Simulation

The simulator allows to observe the behavior of the system under a given policy.

The following policies are provided:

import stochastic_matching as sm

sm.common.get_classes(sm.Simulator)

{'fcfm': stochastic_matching.simulator.fcfm.FCFM,
 'priority': stochastic_matching.simulator.priority.Priority,
 'random_edge': stochastic_matching.simulator.random_edge.RandomEdge,
 'random_item': stochastic_matching.simulator.random_item.RandomItem,
 'e_filtering': stochastic_matching.simulator.e_filtering.EFiltering,
 'constant_regret': stochastic_matching.simulator.constant_regret.ConstantRegret,
 'longest': stochastic_matching.simulator.longest.Longest,
 'virtual_queue': stochastic_matching.simulator.virtual_queue.VirtualQueue}

Tadpole

Bijective

Consider the following tadpole:

from stochastic_matching.display import VIS_OPTIONS

VIS_OPTIONS["height"] = 300
tadpole = sm.Tadpole(m=5, n=3, rates="uniform")
tadpole.show_graph()

Reload

This tadpole is not stabilizable: it is bijective and its unique solution has null edges.

tadpole.show_flow()

Reload

As a consequence, the system is unstable.

tadpole.run("fcfm", n_steps=10000000)

False

The simulator finished before the end (due to queue overflow).

tadpole.simulator.logs.steps_done

1067814

tadpole.show_flow()

Reload

We can look the CCDFs of the run to see what went wrong:

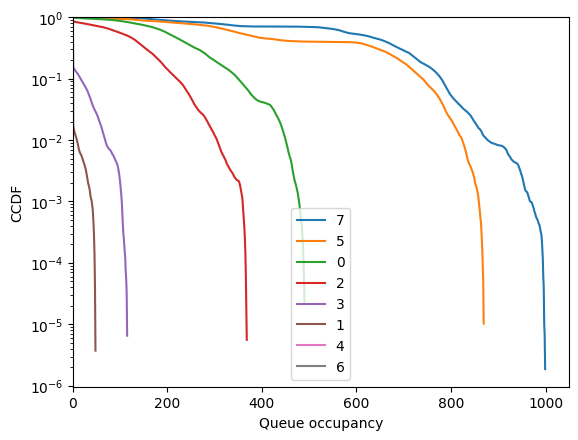

fig = tadpole.simulator.show_ccdf(sort=True)

Node 7 overflowed, while node 5 was not in a good shape either.

This can also be showed with average queue sizes:

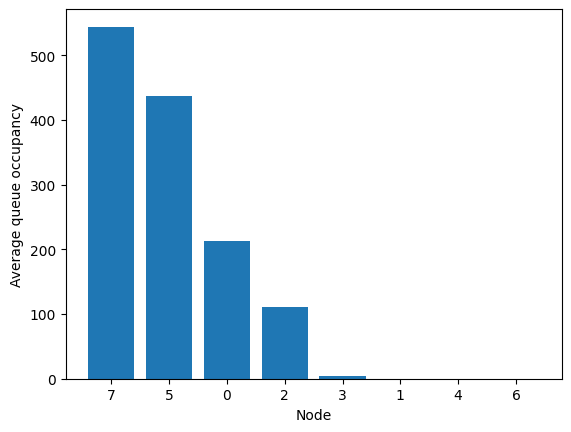

fig = tadpole.simulator.show_average_queues(sort=True)

Let’s change the arrival rates to have something nicer.

tadpole.rates = [1, 1, 1, 1, 2, 2, 2, 1]

We can see that it works!

tadpole.run("fcfm", n_steps=10000000)

True

tadpole.show_flow()

Reload

We can see that the queues are much more tight!

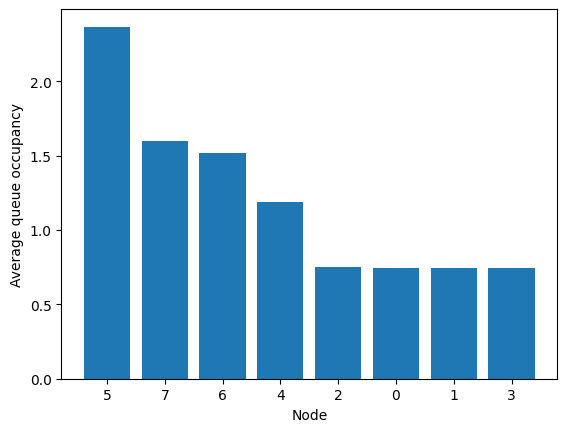

fig = tadpole.simulator.show_average_queues(sort=True)

Note that the average queue can be converted in an average waiting time (using Little’s Law for each node queue).

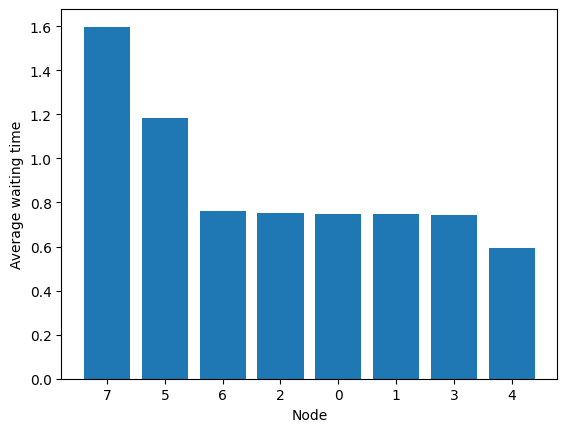

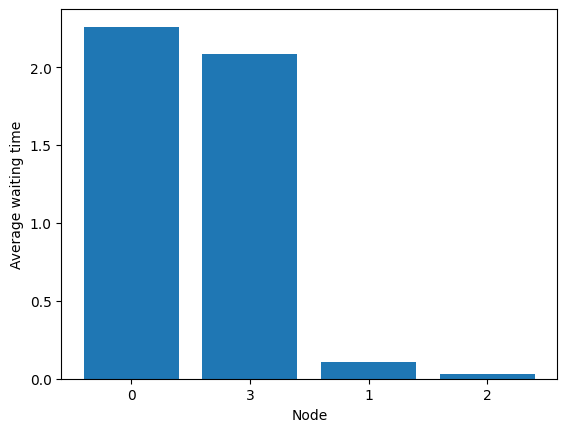

fig = tadpole.simulator.show_average_queues(sort=True, as_time=True)

Nonjective

Consider the following tadpole:

tadpole = sm.Tadpole(rates="uniform", m=4)

It is bipartite and does not verify the stability condition NCond (even bipartite NCond), so all solution break the conservation law.

Simulation fails:

tadpole.run("fcfm", n_steps=10000000, max_queue=100000)

False

tadpole.show_flow()

Reload

Nodes 0, 2, and 4 are in limbo.

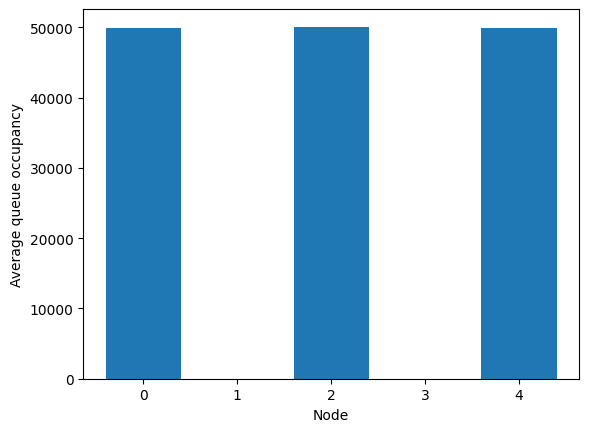

fig = tadpole.simulator.show_average_queues()

Let’s change the arrival rates to have bipartite NCond (which is not non-bipartite NCond).

tadpole.rates = [1, 1, 1, 2, 1]

tadpole.run("fcfm", n_steps=1000000)

True

We can see that it works! FCFM seems to stabilizes even if NCond is not met.

tadpole.show_flow()

Reload

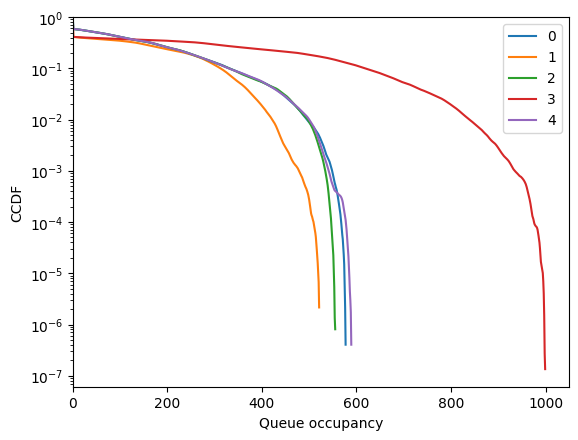

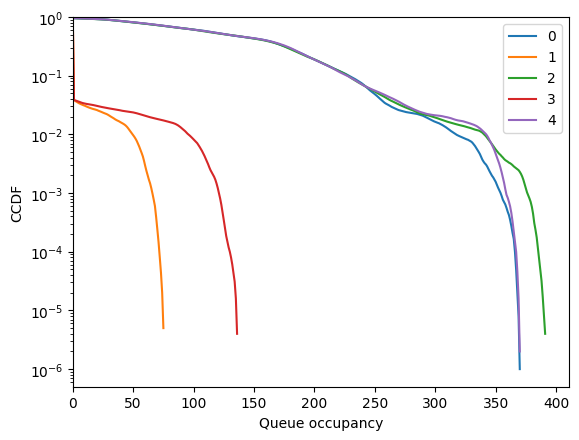

fig = tadpole.simulator.show_ccdf()

Hum, the queues are quite high. Maybe we didn’t wait long enough?

tadpole.run("fcfm", n_steps=10000000, seed=42)

False

fig = tadpole.simulator.show_ccdf()

Not so stable after all… This is not surprising because of the random walk between left and right nodes, which forces queues of arbitrary size if one waits long enough.

Diamond

Consider the following:

diamond = sm.CycleChain(tol=1e-3)
ϵ = 0.2
diamond.rates = [2, 2 + ϵ, 1 + ϵ, 1]

Try fcfm

diamond.run("fcfm", n_steps=10000000)

True

diamond.show_flow()

Reload

Nodes 0 and 3 are non-empty most of the time.

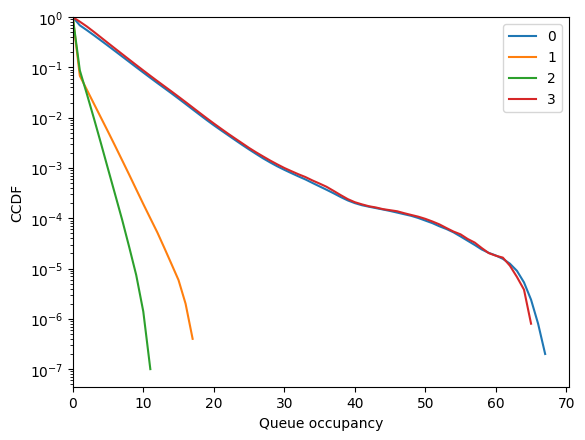

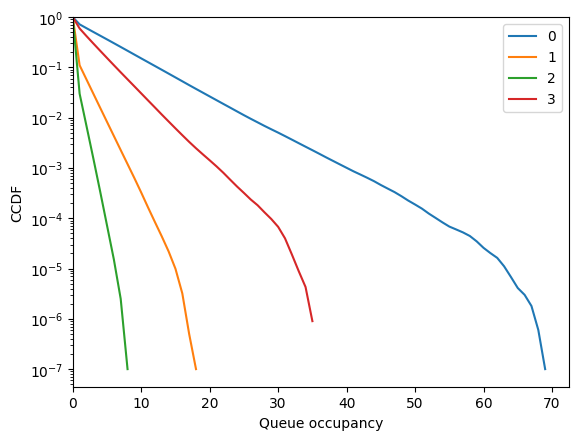

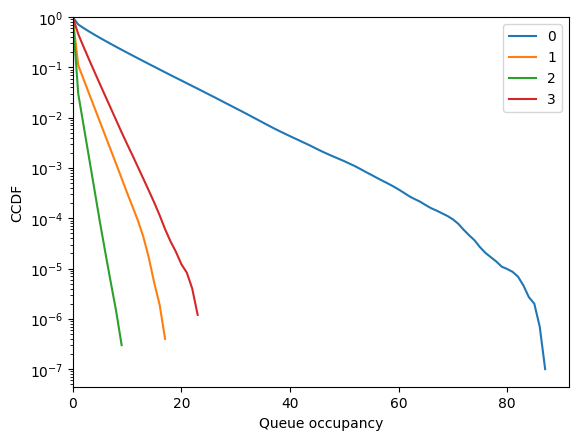

fig = diamond.simulator.show_ccdf(sort=True)

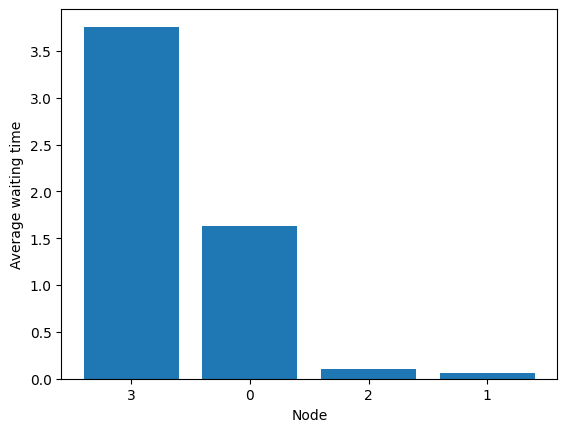

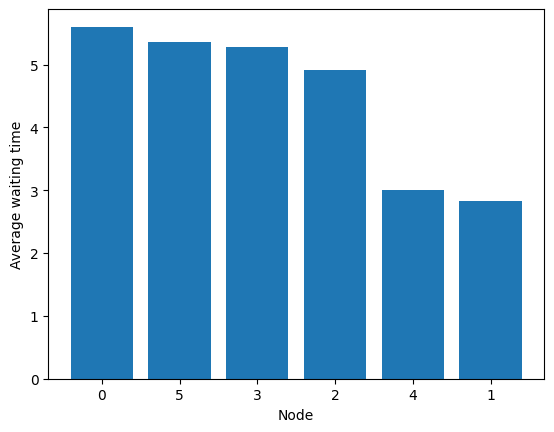

fig = diamond.simulator.show_average_queues(sort=True, as_time=True)

Try random edge (we use a seed to have a True result; in practice, random node is borderline in this example and overflows relatively often).

diamond.run("random_edge", n_steps=10000000, seed=42)

True

diamond.show_flow()

Reload

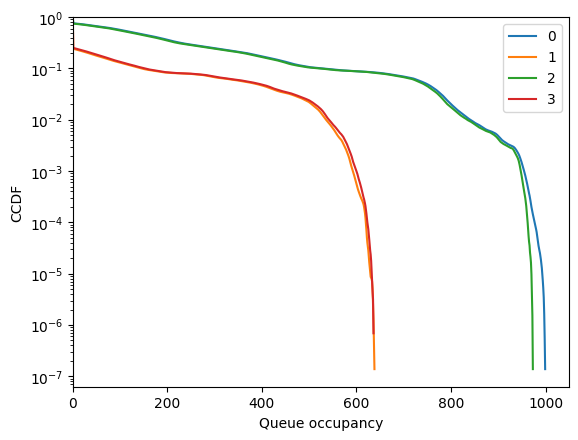

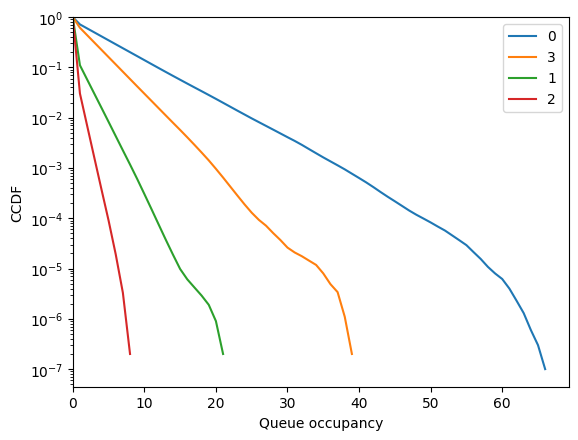

fig = diamond.simulator.show_ccdf()

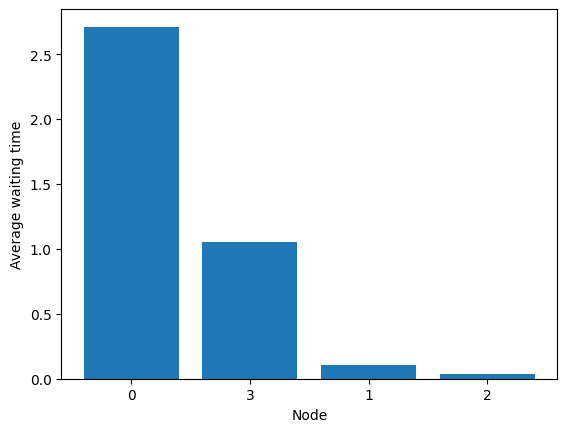

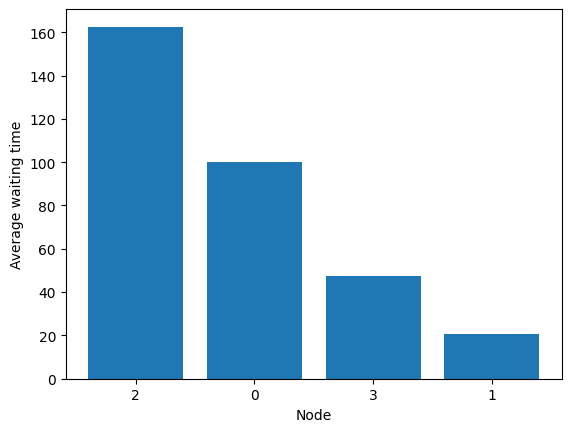

fig = diamond.simulator.show_average_queues(sort=True, as_time=True)

Try random item.

diamond.run("random_item", n_steps=10000000)

True

diamond.show_flow()

Reload

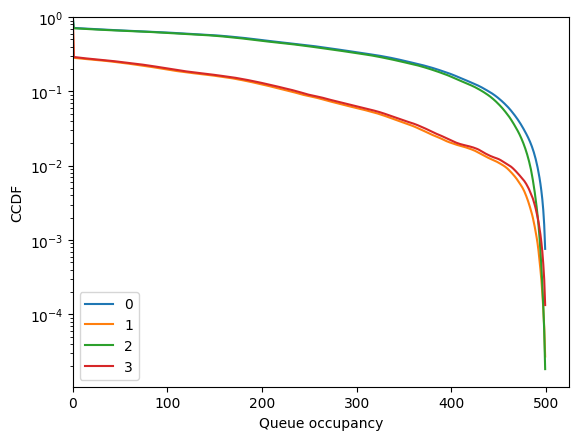

fig = diamond.simulator.show_ccdf()

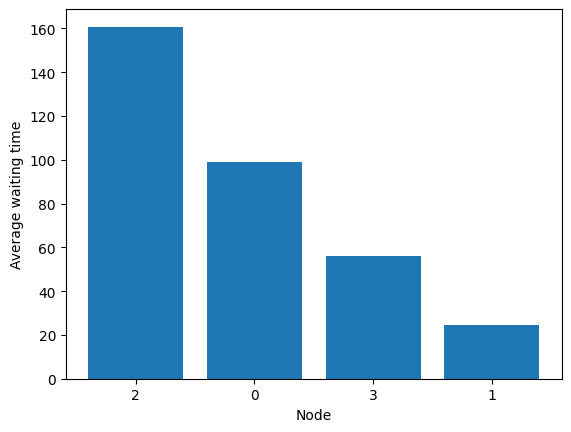

fig = diamond.simulator.show_average_queues(sort=True, as_time=True)

Trying to reach an extreme feasible solution with a greedy policy

Now we would like to have a greedy policy that tries to move on towards the extreme feasible solutions. Sadly, no such policy exists (cf https://hal.archives-ouvertes.fr/hal-03502084).

Yet, we can try to approach them with priority-based greedy selection. First, look at the extreme points (vertices).

diamond = sm.CycleChain(rates=[2, 2.2, 1.2, 1])
for i in range(len(diamond.vertices)):
    diamond.show_vertex(i)

Reload

Reload

We can see that the first vertex prioritizes edges 1 and 3, while the second one prioritizes edges 0 and 4. Let us see what happens if one uses these priorities in a greedy policy.

diamond.run("priority", weights=[0, 1, 0, 1, 0], n_steps=10000000)
diamond.show_flow()

Reload

diamond.run("priority", weights=[1, 0, 0, 0, 1], n_steps=10000000)
diamond.show_flow()

Reload

Not bad, but not perfect. To reach a vertex, we may need to use a filtering policy.

Trying to reach an extreme feasible solution with a filtering policy

diamond.vertices

[{'kernel_coordinates': array([-0.25]),
  'edge_coordinates': array([1. , 1. , 0.2, 1. , 0. ]),
  'null_edges': [4],
  'bijective': True},
 {'kernel_coordinates': array([0.75]),
  'edge_coordinates': array([2. , 0. , 0.2, 0. , 1. ]),
  'null_edges': [1, 3],
  'bijective': False}]

The first kernel is bijective, we just need to forbid the null edge.

diamond.run(
    "longest", forbidden_edges=diamond.vertices[0]["null_edges"], n_steps=10000000
)

True

diamond.show_flow()

Reload

We can check that the matching rate on edge 4 is 0.

diamond.simulation

array([1.00047808, 0.99915264, 0.20158848, 0.99878016, 0.        ])

No noticeable impact on the performance.

fig = diamond.simulator.show_ccdf()

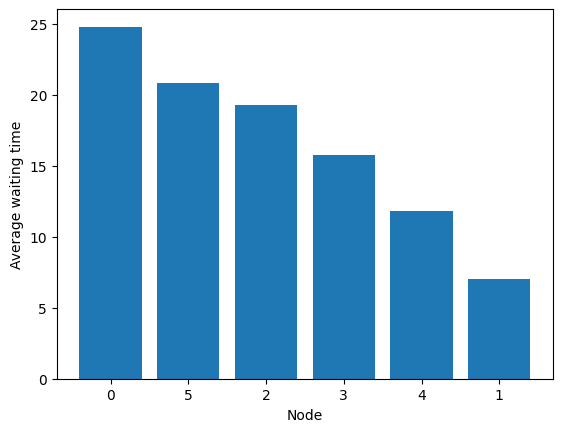

fig = diamond.simulator.show_average_queues(sort=True, as_time=True)

Now we try on the second kernel.

diamond.run(
    "longest", forbidden_edges=diamond.vertices[1]["null_edges"], n_steps=10000000
)

False

diamond.show_flow()

Reload

So this is unstable but the the matching rate on edges 1 and 3 is 0.

diamond.simulation

array([1.99957622, 0.        , 0.20045326, 0.        , 0.99910573])

Performance is bad, as the vertex is injective-only (bipartite).

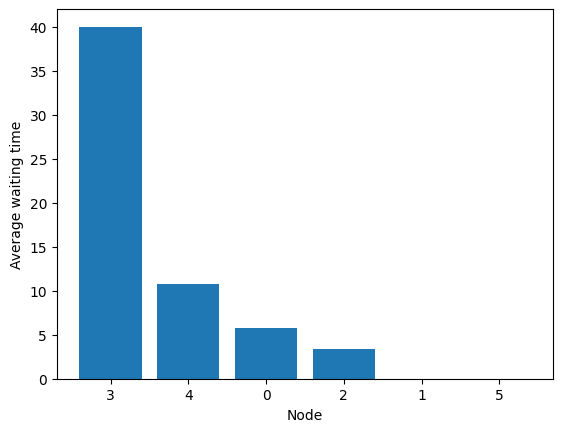

fig = diamond.simulator.show_ccdf()

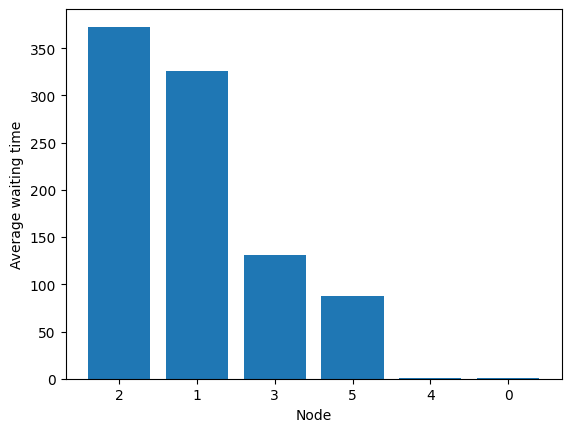

fig = diamond.simulator.show_average_queues(sort=True, as_time=True)

Many solutions exist in that case. For example, use a k-filtering policy (i.e. with threshold).

diamond.run(
    "longest",
    forbidden_edges=diamond.vertices[1]["null_edges"],
    k=500,
    n_steps=10000000,
)

True

diamond.show_flow()

Reload

So this is stable with a limited matching rate on edges 1 and 3.

diamond.simulation

array([1.9995712e+00, 1.5276800e-03, 1.9951488e-01, 1.9712000e-04,
       9.9900160e-01])

Performance is controlled by the threshold.

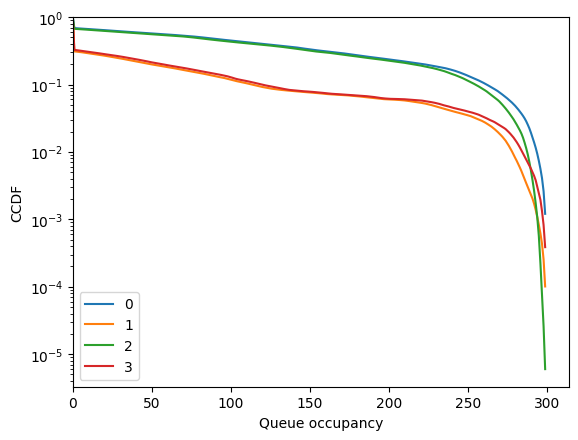

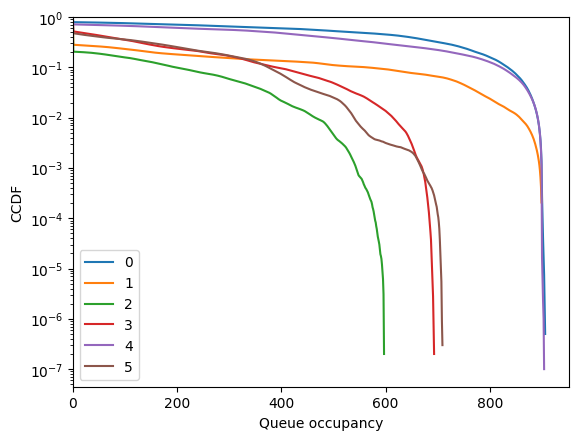

fig = diamond.simulator.show_ccdf()

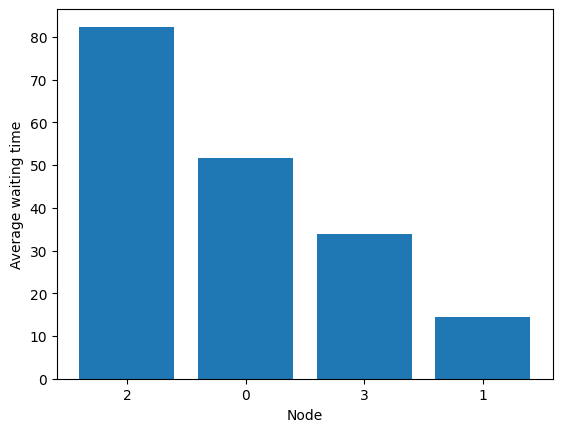

fig = diamond.simulator.show_average_queues(sort=True, as_time=True)

Reward maximization variant

In many use cases, one may want to optimize the flow based on some reward associated to each edge. It turns out that this equivalent to finding a subset of edges to forbid such that the flow(s) on that subgraph will maximize the reward. stochastic_matching automatically implements this in two ways:

• It gives an optimal flow associated to a vector of rewards;

• Filtering policies can take a vector of rewards as arguments and automatically discard the null edges of one optimal solution.

rewards = [2, 1, 2, 1, 2]
diamond.optimize_rates(rewards)

array([2. , 0. , 0.2, 0. , 1. ])

diamond.run("longest", rewards=rewards, k=300, forbidden_edges=True)

True

diamond.show_flow()

Reload

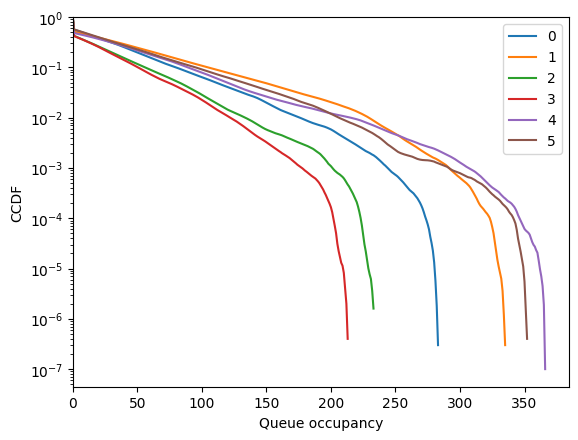

fig = diamond.simulator.show_ccdf()

fig = diamond.simulator.show_average_queues(sort=True, as_time=True)

Fish

The purpose of this example is to show a case where a family of greedy with priorities can asymptotically reach the vertices.

fish = sm.KayakPaddle(
    l=0, m=4, names=[str(i) for i in range(1, 7)], rates=[4, 4, 3, 2, 3, 2]
)
fish.show_graph()

Reload

Look at the vertices:

for i in range(len(fish.vertices)):
    fish.show_vertex(i, disp_rates=False)

Reload

Reload

Weighted matching

Let us try to nullify the edge between 3 and 6 with adapted priorities. As this may be unstable, let us pick a large max queue.

rewards = [0, 2, 2, 1, 0, 0, 1]
fish.run("priority", weights=rewards, n_steps=10000000, max_queue=1000000)

True

fish.show_flow(disp_rates=False)

Reload

Threshold-based weighting

So we managed to almost nullify the edge at the price of making node 4 unstable (it cannot check the conservation law). This can be addressed by using a threshold above which the policy is altered.

counterweights = [0, 1, 1, 2, 0, 0, 2]

fish.run(
    "priority",
    weights=rewards,
    n_steps=10000000,
    threshold=500,
    counterweights=counterweights,
)

True

fish.show_flow(disp_rates=False)

Reload

And that’s it! The threshold controls the trade-off between the size of queue 4 and the nullity of edge (3, 6).

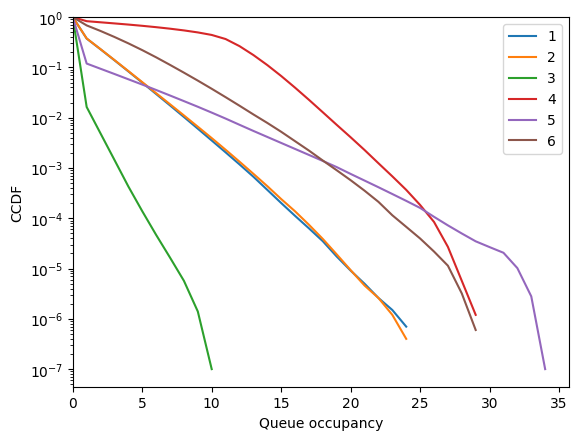

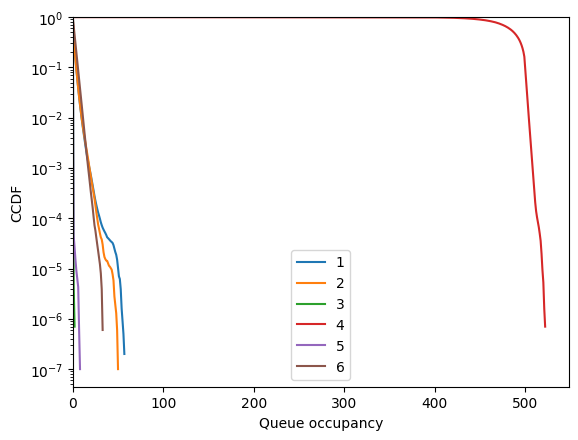

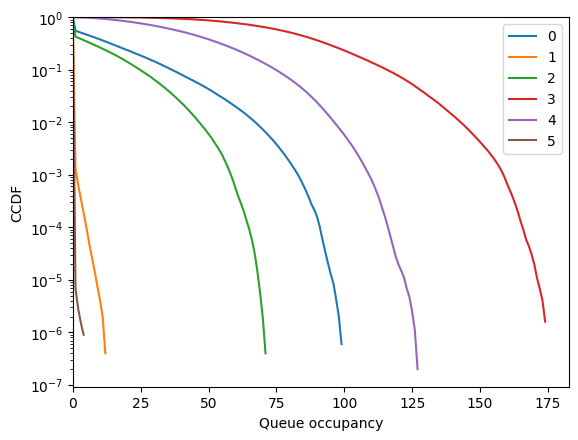

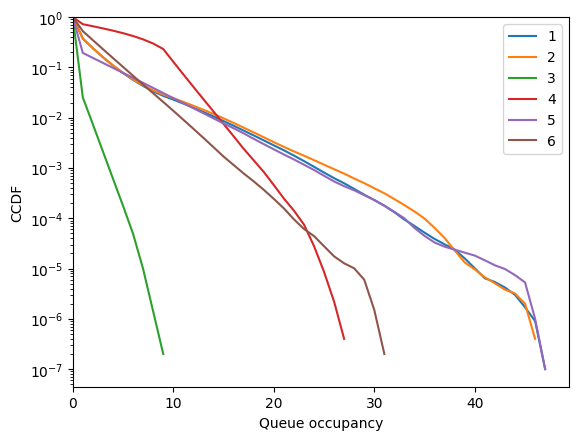

fig = fish.simulator.show_ccdf()

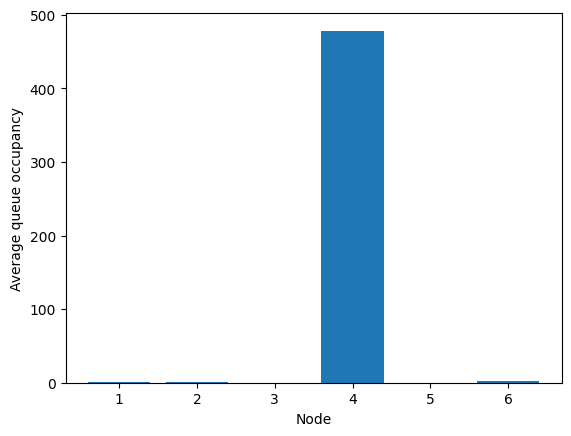

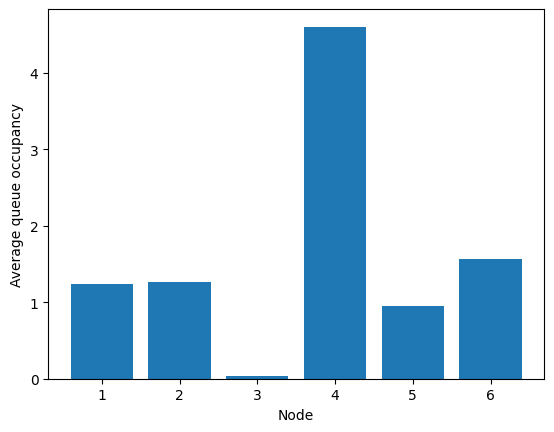

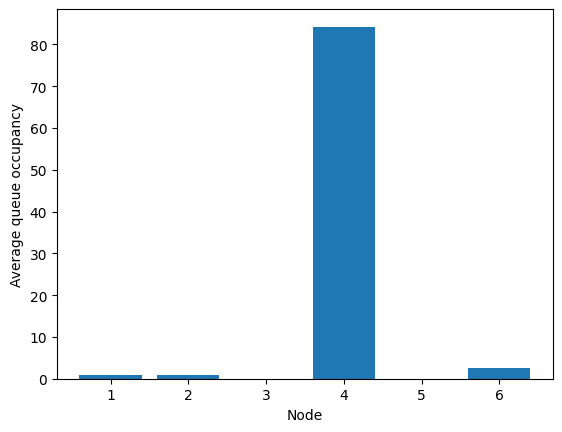

fig = fish.simulator.show_average_queues()

fish.run(
    "priority",
    weights=rewards,
    n_steps=10000000,
    threshold=10,
    counterweights=counterweights,
)

True

fish.show_flow(disp_rates=False)

Reload

And that’s it! The threshold controls the trade-off between the size of queue 4 and the nullity of edge (3, 6).

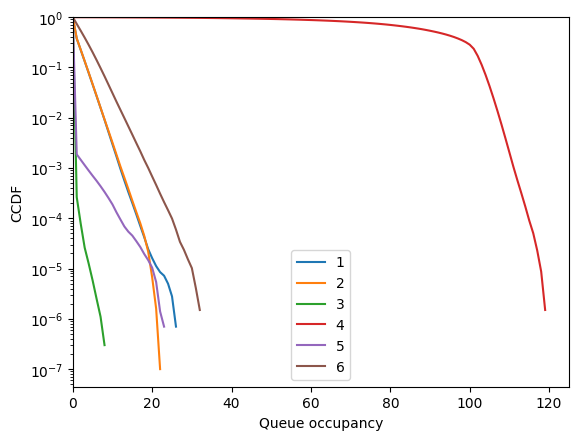

fig = fish.simulator.show_ccdf()

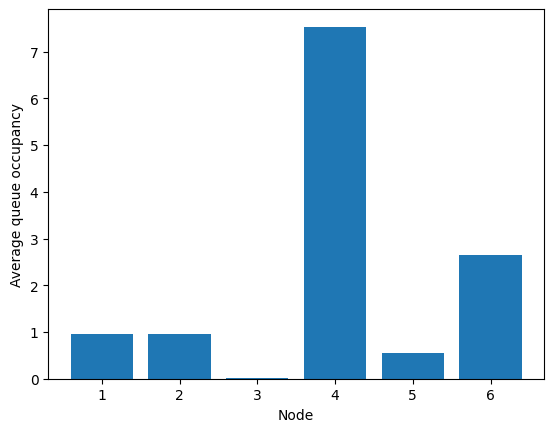

fig = fish.simulator.show_average_queues()

Reward-based scoring

Another possibility: use a reward-based greedy scoring.

fish.run("longest", rewards=rewards, n_steps=10000000, beta=0.01, shift_rewards=True)

True

fish.show_flow(disp_rates=False)

Reload

fig = fish.simulator.show_ccdf()

fig = fish.simulator.show_average_queues()

fish.run("longest", rewards=rewards, n_steps=10000000, beta=0.1, shift_rewards=True)

True

fish.show_flow(disp_rates=False)

Reload

fig = fish.simulator.show_ccdf()

fig = fish.simulator.show_average_queues()

And that’s it! Beta controls the trade-off between the size of queue 4 and the nullity of edge (3, 6).

Reaching a highly degenerated vertex

The following model has very injective vertices.

import numpy as np

codomino = sm.Codomino(rates=[2, 4, 2, 2, 4, 2])
codomino.base_flow = np.array([1.0, 1.0, 1.0, 2.0, 0.0, 1.0, 1.0, 1.0])
codomino.vertices

[{'kernel_coordinates': array([-1., -1.]),
  'edge_coordinates': array([0., 2., 0., 4., 0., 0., 2., 0.]),
  'null_edges': [0, 2, 4, 5, 7],
  'bijective': False},
 {'kernel_coordinates': array([-1.,  1.]),
  'edge_coordinates': array([2., 0., 0., 2., 2., 0., 0., 2.]),
  'null_edges': [1, 2, 5, 6],
  'bijective': False},
 {'kernel_coordinates': array([1., 1.]),
  'edge_coordinates': array([2., 0., 2., 0., 0., 2., 0., 2.]),
  'null_edges': [1, 3, 4, 6],
  'bijective': False}]

In particular the first vertex is made of three unconnected pairs:

codomino.show_vertex(0)

Reload

Pure filtering

Let try to reach it with a filtering policy without threshold.

codomino.run(
    "longest",
    forbidden_edges=codomino.vertices[0]["null_edges"],
    n_steps=10000000,
    max_queue=100000,
)

True

codomino.show_flow()

Reload

As this is pure filtering, the desired edges are indeed null.

codomino.simulation

array([0.       , 1.9977536, 0.       , 3.9996384, 0.       , 0.       ,
       2.0006656, 0.       ])

But performance is awful!

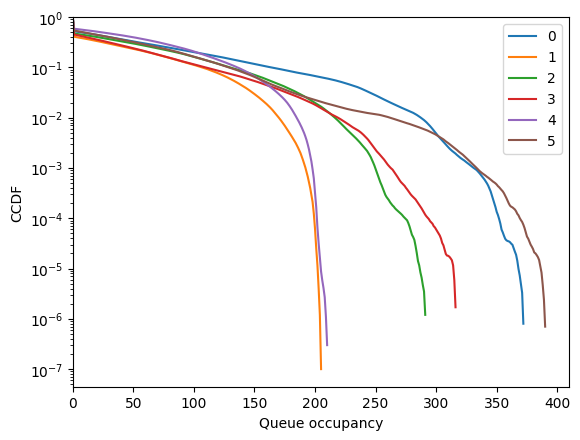

fig = codomino.simulator.show_ccdf()

fig = codomino.simulator.show_average_queues(sort=True, as_time=True)

\(k\)-filtering

A softer solution in that case is to use a \(k\)-filtering policy (i.e. with threshold).

codomino.run(
    "longest",
    forbidden_edges=codomino.vertices[0]["null_edges"],
    k=900,
    n_steps=10000000,
)

True

codomino.show_flow()

Reload

So this is stable with a limited matching rate on forbidden edges.

codomino.simulation

array([3.0672000e-03, 1.9972304e+00, 0.0000000e+00, 3.9954352e+00,
       0.0000000e+00, 2.9280000e-03, 1.9968848e+00, 3.7328000e-03])

Performance is controlled by the threshold.

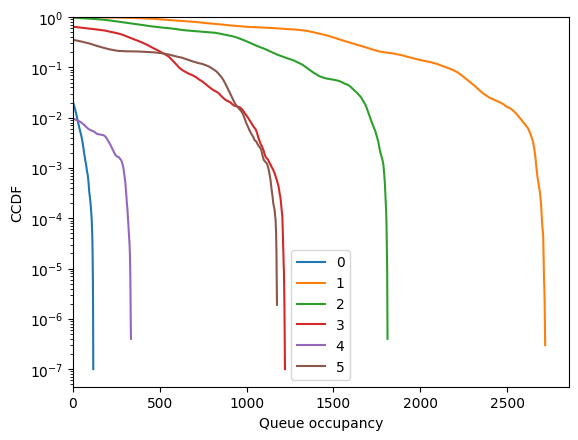

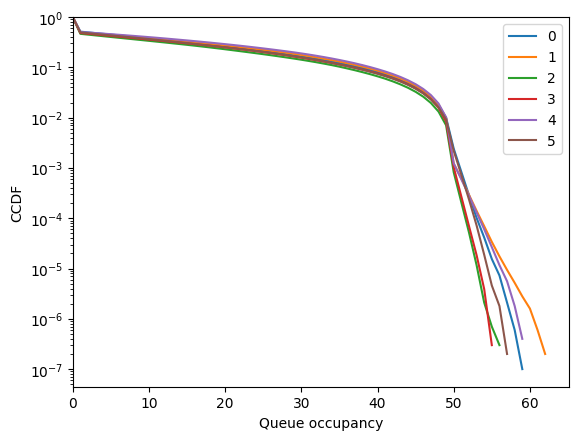

fig = codomino.simulator.show_ccdf()

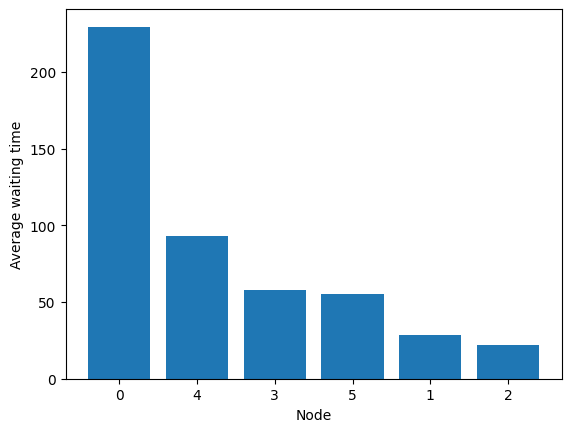

fig = codomino.simulator.show_average_queues(sort=True, as_time=True)

codomino.run(
    "longest",
    forbidden_edges=codomino.vertices[0]["null_edges"],
    k=50,
    n_steps=10000000,
)

True

codomino.show_flow()

Reload

codomino.simulation

array([0.0443776, 1.9524512, 0.0306336, 3.9258976, 0.0123232, 0.0332736,
       1.9575072, 0.0435152])

fig = codomino.simulator.show_ccdf()

fig = codomino.simulator.show_average_queues(sort=True, as_time=True)

Other filtering policies exists to reach the vertex.

\(\epsilon\)-filtering

codomino.run(
    "e_filtering",
    forbidden_edges=codomino.vertices[0]["null_edges"],
    epsilon=0.01,
    n_steps=10000000,
)

True

codomino.show_flow()

Reload

codomino.simulation

array([0.027568 , 1.9696768, 0.0203312, 3.9526368, 0.0098112, 0.0194064,
       1.9728544, 0.0276576])

fig = codomino.simulator.show_ccdf()

fig = codomino.simulator.show_average_queues(sort=True, as_time=True)

rewards = [1 * (i not in codomino.vertices[0]["null_edges"]) for i in range(8)]
rewards

[0, 1, 0, 1, 0, 0, 1, 0]

Extended-Gradient Primal-Dual (EGPD)

codomino.run("virtual_queue", rewards=rewards, beta=0.01, n_steps=10000000)

True

codomino.show_flow()

Reload

codomino.simulation

array([8.2896000e-03, 1.9915008e+00, 5.9280000e-03, 3.9822880e+00,
       3.2800000e-03, 9.3072000e-03, 1.9884384e+00, 1.0620800e-02])

fig = codomino.simulator.show_ccdf()

fig = codomino.simulator.show_average_queues(sort=True, as_time=True)

Constant-Regret Primal-Dual (CRPD)

from numba import njit
v = njit(lambda t: (t+1)**.2)
codomino.run("constant_regret", rewards=rewards, fading=v, n_steps=10000000)

True

codomino.show_flow()

Reload

codomino.simulation

array([0.0537568, 1.9464192, 0.035488 , 3.9115984, 0.017136 , 0.0385824,
       1.9464   , 0.0505264])

fig = codomino.simulator.show_ccdf()

fig = codomino.simulator.show_average_queues(sort=True, as_time=True)

Running multiple simulations

The methods exposed above are for the analysis of a single model.

Simulations can be also be batched to quickly build a serie of experiments. Key ingredients:

• Iterator: builds a variable parameter.

• XP: builds a serie of simulation to run.

• evaluate: run simulations and extract metrics out of it.

(see the reference section for details)

Below are two toy examples.

Measuring the delay of a fobidden-edge policy on a injective-only vertex

from stochastic_matching import XP, Iterator, evaluate
from multiprocess import Pool

For most scenarios, one single long simulation is enough. However, what we measure here is related to a unbiased random walk, so we will build a redundant iterator.

xp  = XP(name='RW', simulator='longest', model=sm.CycleChain(),
         iterator=Iterator('n_steps', [2**t for t in range(10, 21) for _ in range(1000)], name='T'),
         forbidden_edges=True, rewards=[0, 1, 1, 1, 0])

with Pool() as p:
    res = evaluate(xp, ["delay"], p)

Let’s gather everything.

from collections import defaultdict
metrics = defaultdict(list)
for t, d in zip(res['RW']['T'], res['RW']['delay']):
    metrics[t].append(d)
for k, v in metrics.items():
    metrics[k] = np.average(v)
steps = [k for k in metrics]
delay = [v for v in metrics.values()]

And plot!

from matplotlib import pyplot as plt

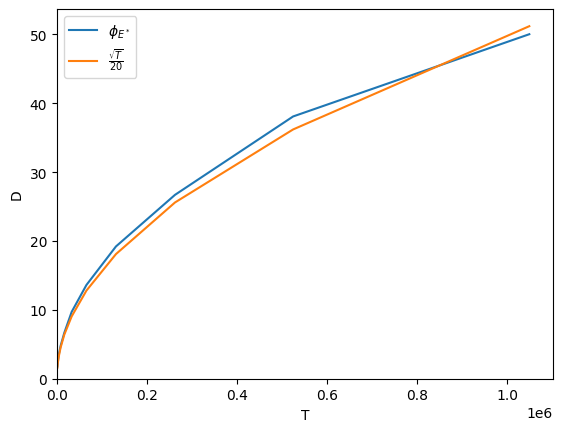

plt.plot(steps, delay, label='$\\phi_{E^*}$')
plt.plot(steps, [np.sqrt(t)/20 for t in steps], label='$\\frac{\\sqrt{T}}{20}$')
plt.xlim([0, None])
plt.ylim([0, None])
plt.xlabel('T')
plt.ylabel('D')
plt.legend()
plt.show()

Comparing delay/regret trade-off for two policies

xp  = XP(name='$k$-filtering', simulator='longest', model=sm.CycleChain(),
         iterator=Iterator('k', [2**t for t in range(10)]),
         forbidden_edges=True, rewards=[1, 1, 1, 1, 0])
xp += XP(name='EGPD', simulator='virtual_queue', model=sm.CycleChain(),
         iterator=Iterator('beta', [2**(-t) for t in range(10)]),
         rewards=[1, 1, 1, 1, 0])

with Pool() as p:
    res = evaluate(xp, ["delay", "regret"], p)

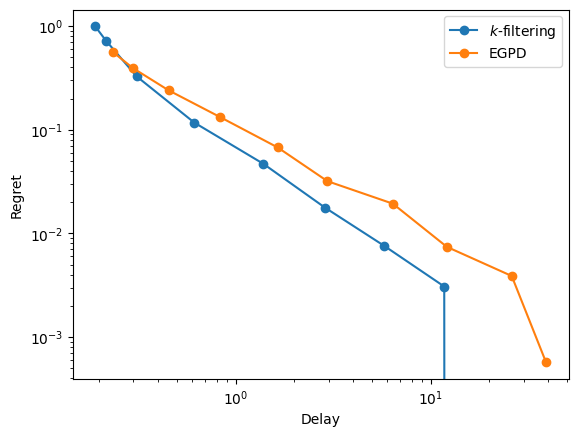

for policy, metrics in res.items():
    plt.loglog(metrics['delay'], metrics['regret'], marker='o', label=policy)
plt.xlabel('Delay')
plt.ylabel('Regret')
plt.legend()
plt.show()
